Metrinch Engineering Solutions LLP

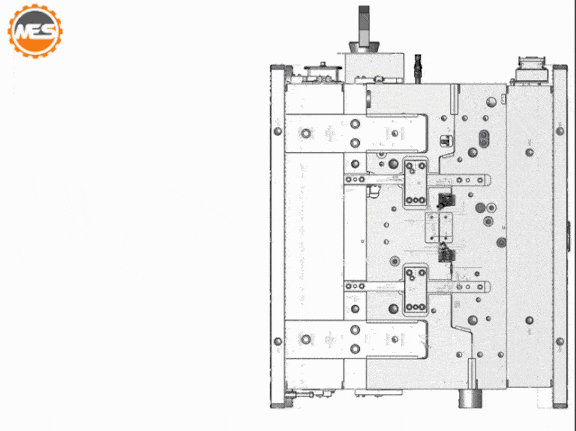

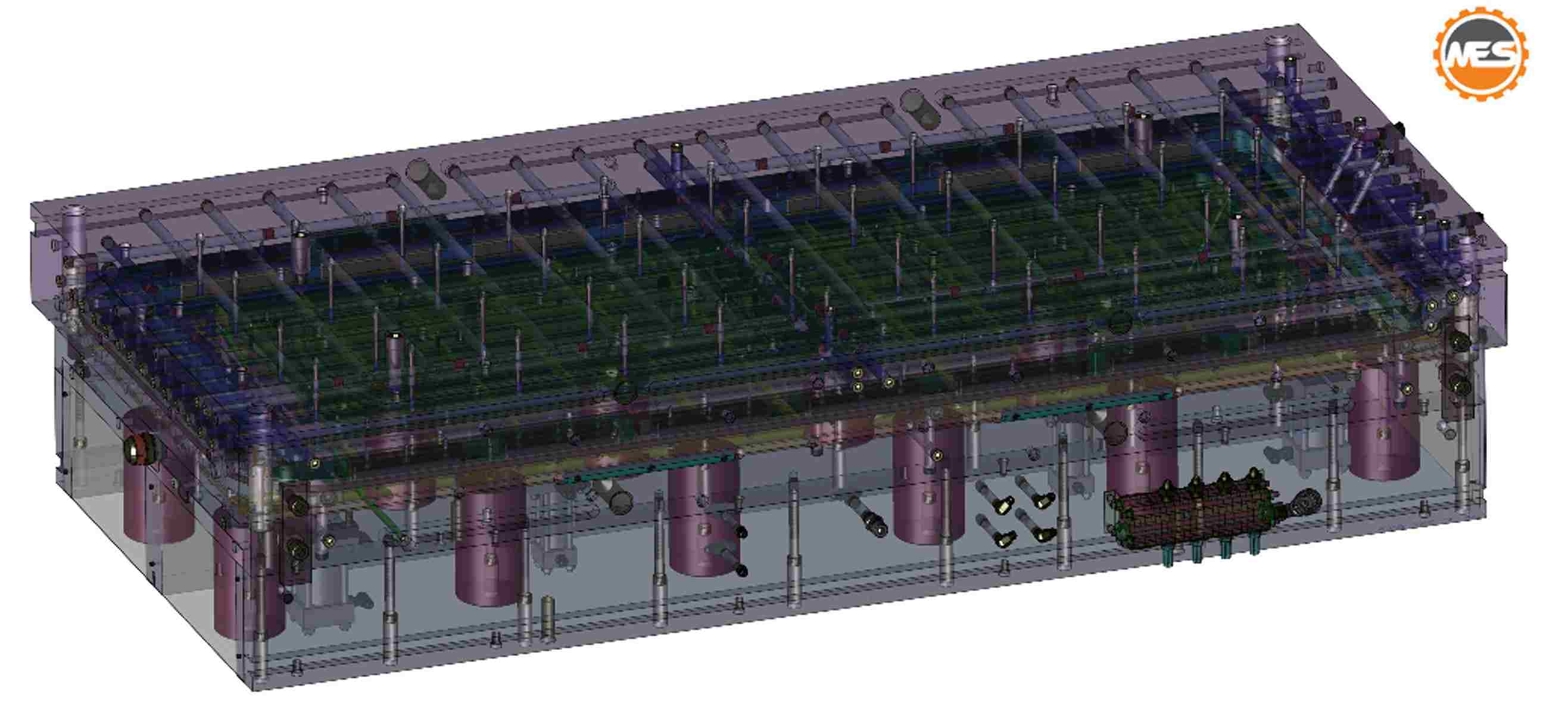

4+4 Cavity, Injection Mold
4 different Parts,
Core Side Standard Ejection,
16 Drop Hot Runner System,
225 ejector Pins Total.
Mold weight – 27000 lbs

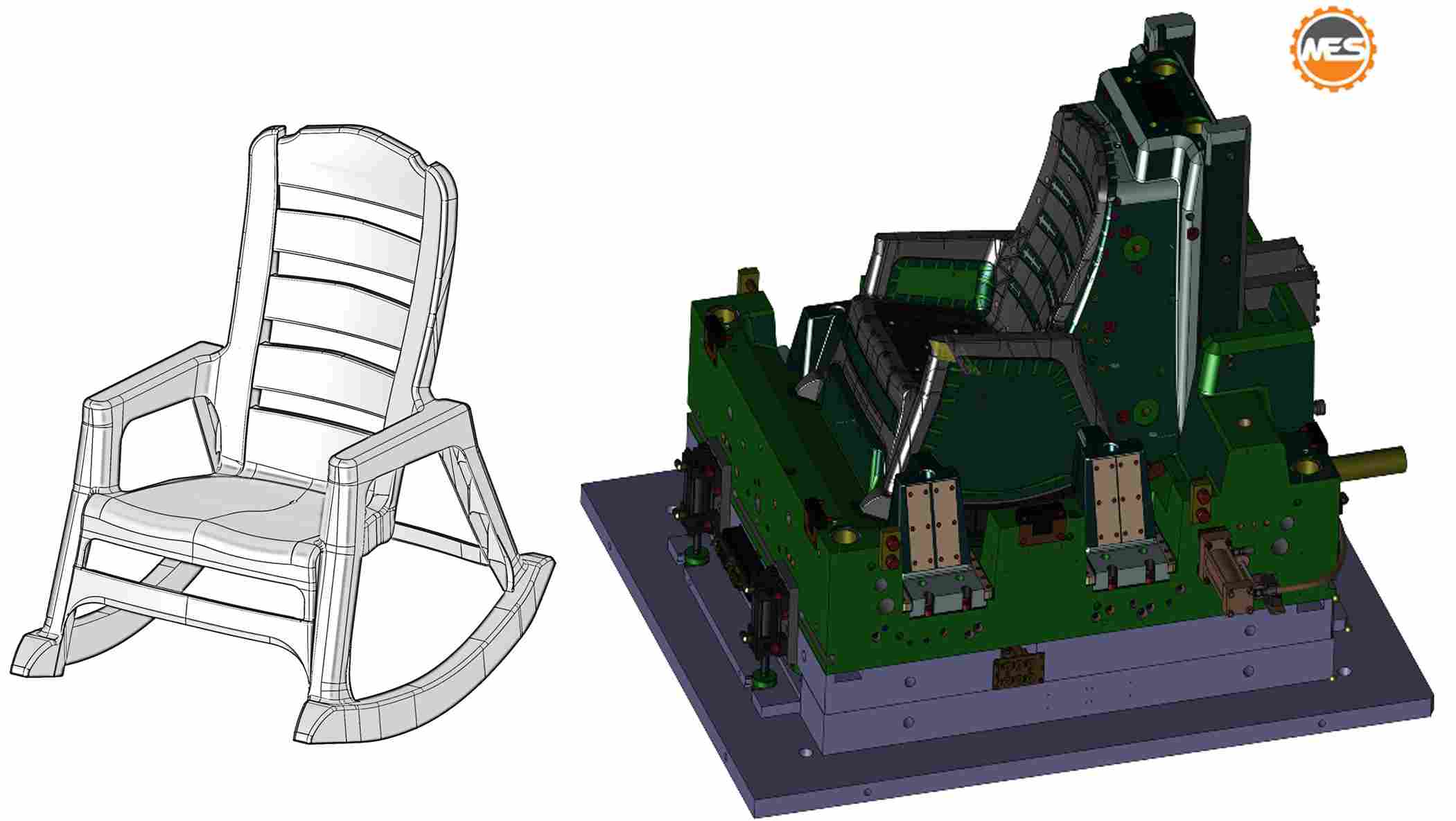

Rocker Chair Injection Mold
Reverse Injection Tool,
Hydraulic Floating Core assembly with an ejection system,
Large sliders,
Bar Lifters,
Two Drop Hot Runner System,
Hydraulic Ejection.
Mold weight 70000 lbs.

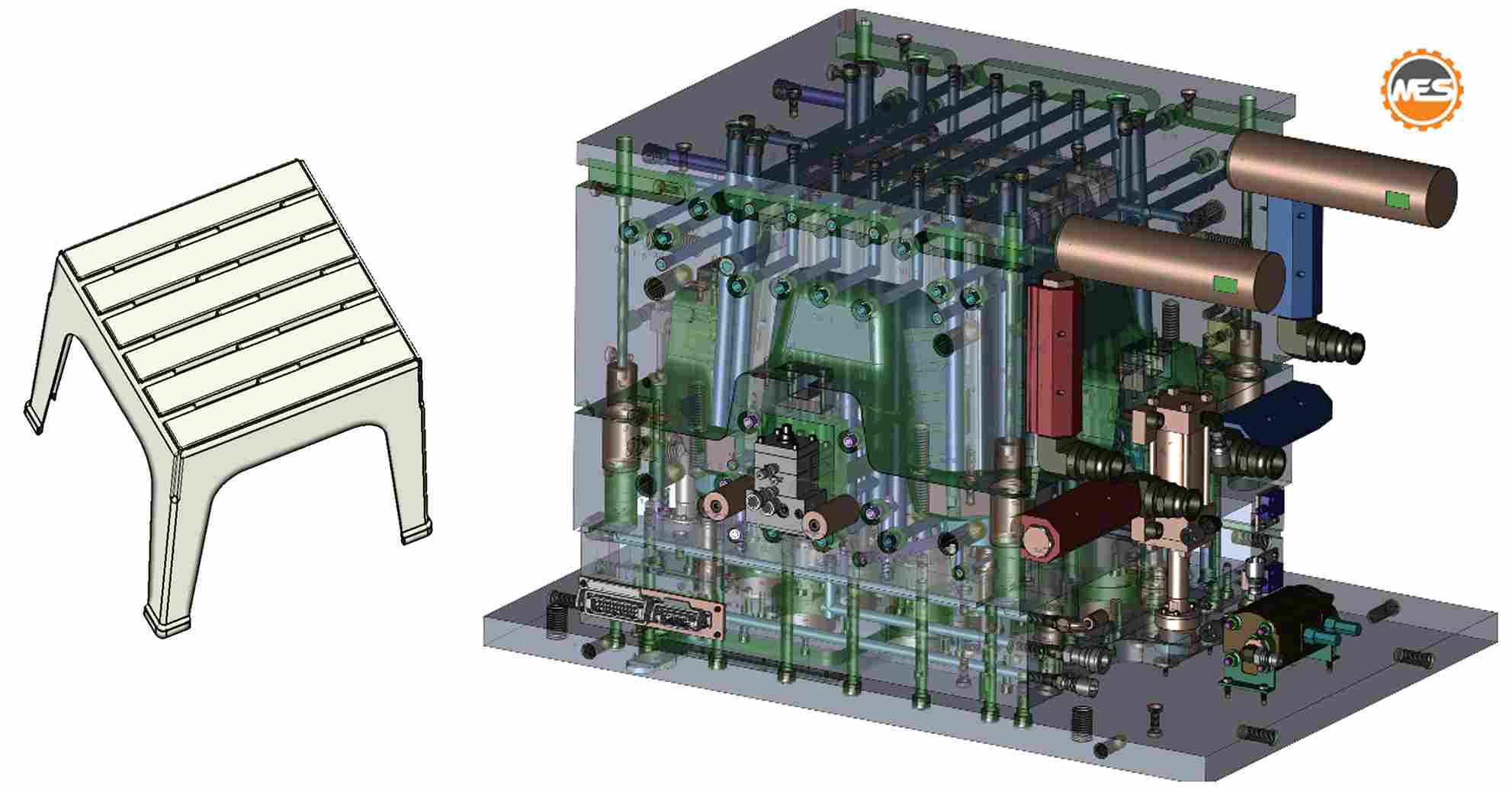

Side Table Injection Mold
Reverse Injected Tool,
Single Drop Hot Runner System,
Hydraulic Ejection.
Mold weight 17500 lbs.

Filter Body Injection Mold
Single Cavity Injection Tool,
Unscrewing mechanism for thread feature,
Cavity Hook Slider,
Stripper ring ejection system,
Hot drop sytem.
Mold weight 25000 lbs.

Filter Body Injection Mold
3 Unscrewing mechanism,
Stripper Plate ejection system,
Hot drop system.
Mold weight 20000 lbs.

Crate Core Side Injection Mold
Large Sliders & Large Lifters,
4 drop Hotrunner system.
Mold weight 25000 lbs.

2 Shot Rotary Tool
2 Shot Rotary Mold View
18 Lifters, Press – 2700 T
Mold weight – 46000 lbs

2 Shot Rotary Tool
2 Shot Rotary Mold View
24 Lifters, Press – 1650 T
Mold weight – 15000 lbs

Reverse Injected Molds
Reverse Injected Mold View
30 Lifters, Press – 1900 T
Mold weight – 46000 lbs

Reverse Injected Molds
Reverse Injected Mold View
Press – 850 T
Mold weight – 12000 lbs

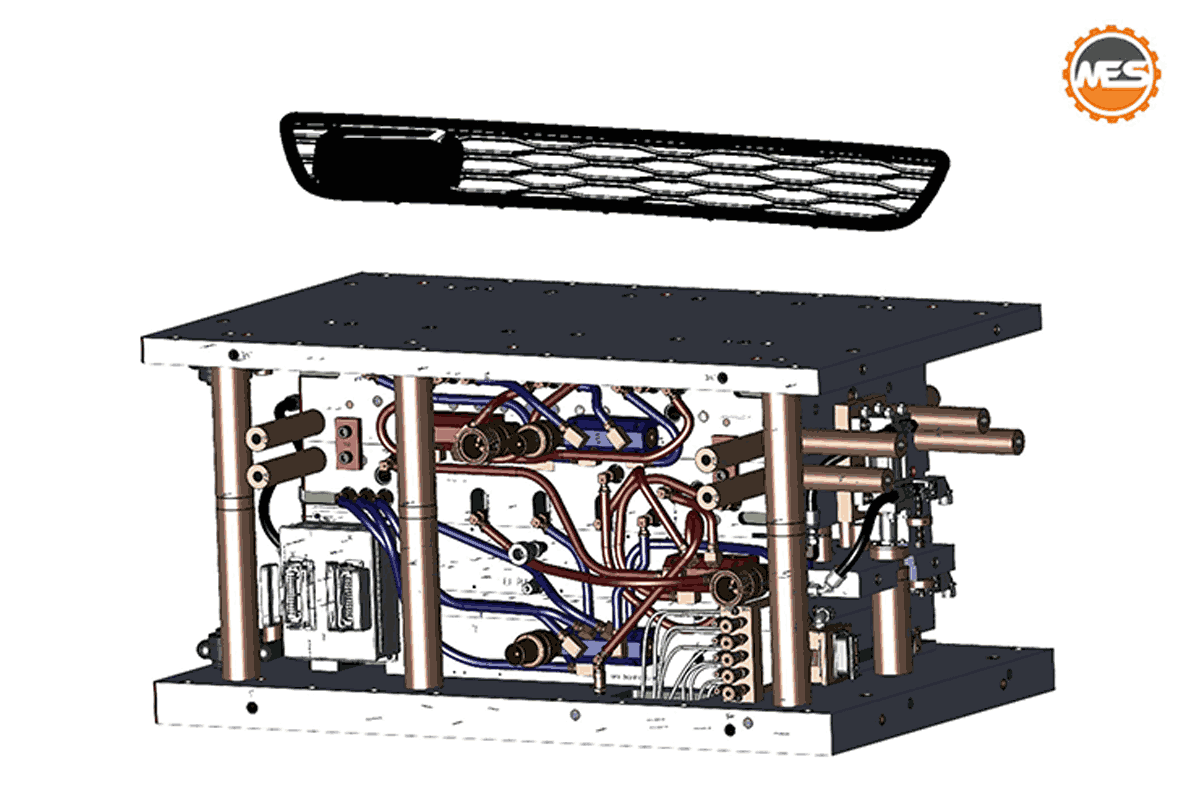

Interiors / Exteriors parts
Full Mold View 2 Cavity Hydraulic core pull, 40 Lifters,
12 Hydraulic cores,
Press – 2700 T,
Mold weight – 50000 lbs

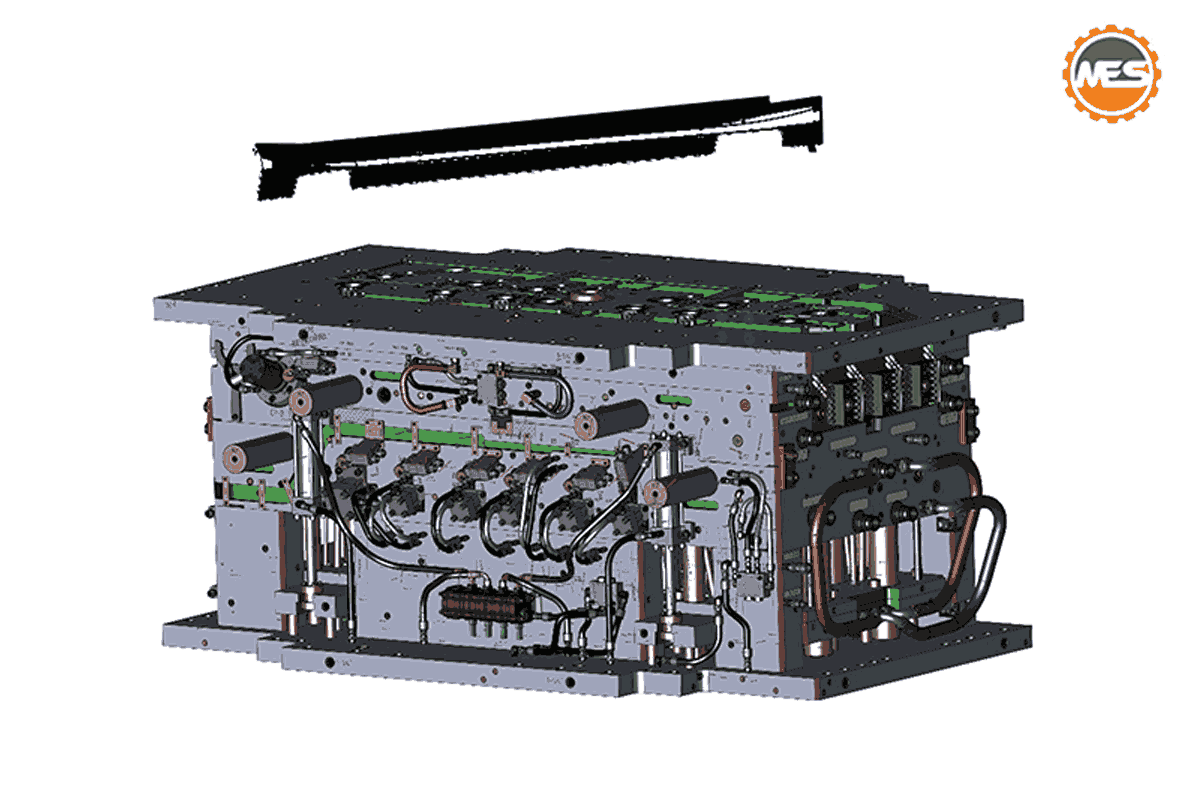

Interiors / Exteriors parts
Full Mold View 32 Lifters,
Press – 2200 T,
Mold weight – 32000 lbs

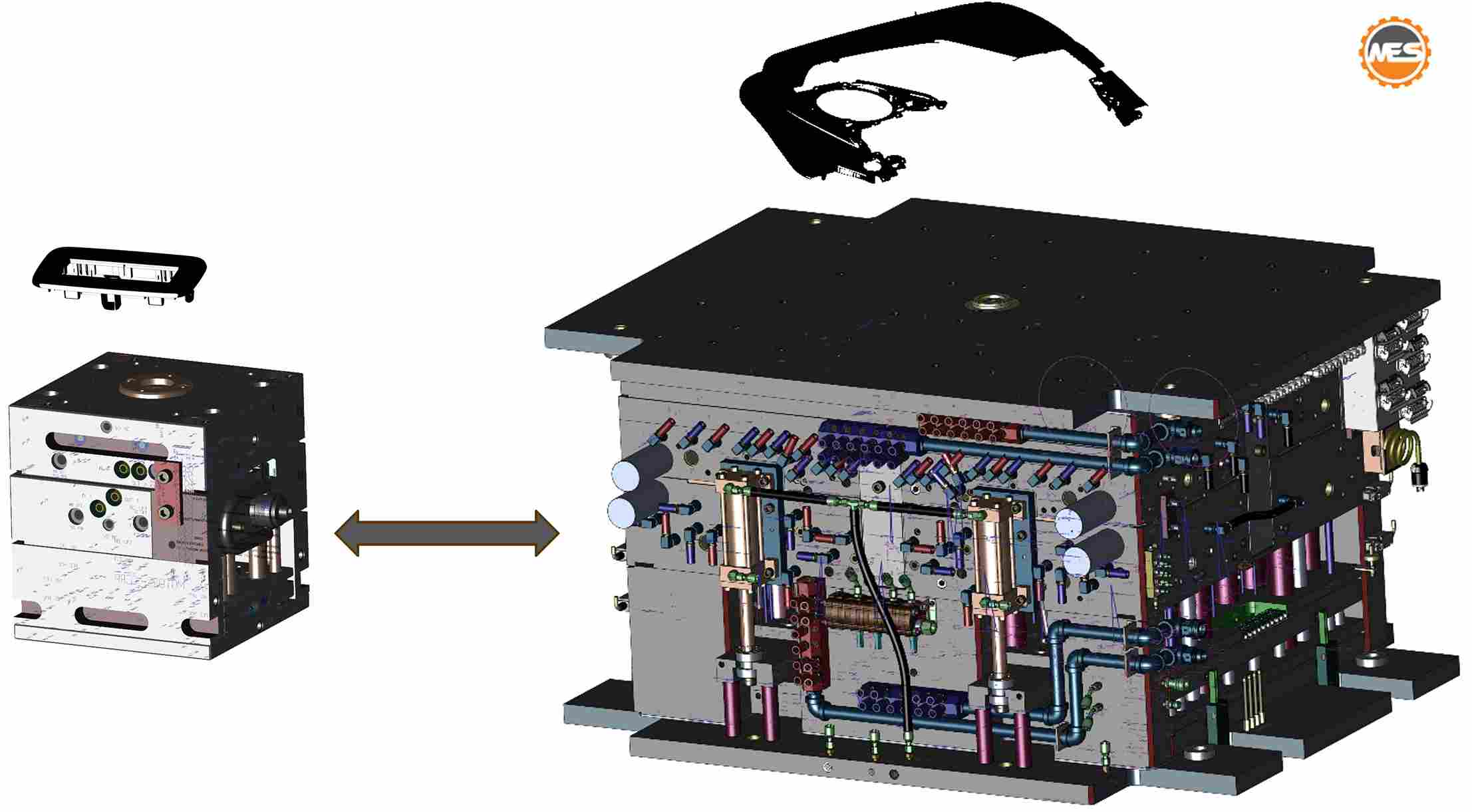

Smaller size Tool View(left one)
4 Sliders & 4 Lifters,
Press – 80T,
Mold weight – 450 lbs

Large size Tool View (Right one)
2 Stage Ejection Mold,
Press – 3000 T,
Mold weight – 60000 lbs

3 Plate – Retractor Mold

Hydraulic Retractor Core Mold

Door Panel Mold views

Compression mold block surfacing

Specializes in precision plastic injection mold design with over 20 years of industry expertise. Trusted by clients for accuracy, efficiency, and on-time delivery.
